ASA2212GL-MEW
ASA2212GL-MEW - Image 2
,

ASA2212GL-MEW

+ Free Shipping

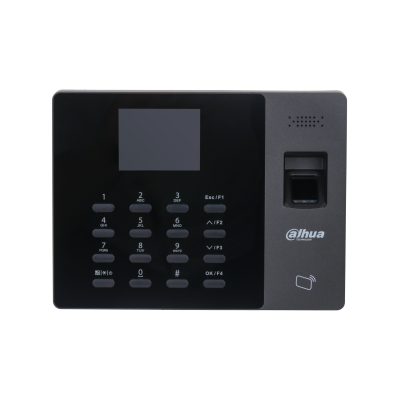

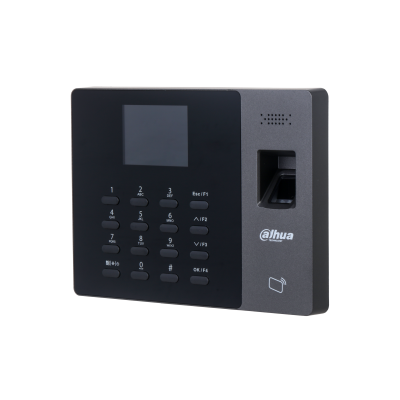

Dahua Card Swiping,Password,Fingerprint Attendance Standalone

> Built of PC and ABS material, and comes with 2.4″ LCD with a resolution of 240 (H) × 320 (V).
> Built-in rechargeable lithium battery, which can be used for about 3 hours after being fully charged.
> Convenient to configure through its webpage that is accessible to both computers and mobile devices.
> Attendance can be marked through card(IC,ID), password and fingerprint.
> Supports 3,000 users, 3,000 cards, 3,000 fingerprints, and 100,000 attendence records.
> Supports configuring up to 20 departments, and 24 shifts directly on the device. Each shift can contain 2 working periods, and 1 overtime period.
> Features voice prompts.
> Supports importing and exporting information on people, cards, shifts, and schedules through the USB flash drive.
> Supports TCP/IP connection, auto registration, P2P registration and DHCP.
> Online update and update through USB.
Categories: ,
System
Main Processor Embedded Processor
Button Type Mechanical
Network Protocol IPv4;UDP;P2P;IPv6;TCP
OSDP Protocol Yes
Input Method T9
Interoperability ONVIF;CGI
SDK Yes
API Yes
Basic
Display Screen 2.4-inch display screen
Product Type Attendance Standalone
Screen Type Non-touchscreen
Screen Resolution 240 (H) × 320 (V)
Voice Prompt Yes
Powering On/Off Button 1
Casing Material PC + ABS
RFID
Card Type ID card;M1 Card
Modulation Type AM
Frequency Range 13.56MHz and 125KHz
Max. Transmission Power 125KHz：66dBuA/m @10m

13.56MHz:42dBuA/m @10m
Function
Period List 128 periods
Holiday Period 128 periods
Network Update Yes
Restricted List/Trusted List Yes
Auto Registration Yes
Network
Wi-Fi Yes
Wireless Standard IEEE802.11b/802.11g/802.11n
Wireless Frequency Range 2400-2483.5MHz
Max. Transmission Power ≤20dBm@2400-2483.5MHz
Performance
IC Card Encryption Yes
Response Time 0.2 S
Card Reading Distance 3 cm (1.18″)
Fingerprint Sensor Type Optical
Fingerprint Verification Mode 1:N
Fingerprint Comparison Time 1.5 S
Fingerprint Recognition Time 0.5 S
Attendance
Export Attendance Record

USB flash drive export
Attendance Check Mode Auto/Manual Mode;Auto Mode;Manual Mode;Fixed Mode
Attendance Statistics Yes
Department Setting 20 departments
Schedule Setting 24 shifts
Ring Tone Yes
User
User (Card) Type General user, VIP user, patrol user, guest user, blocklist user, other users, custom user 1 and custom user 2
Capacity
User Capacity 3,000
Fingerprint Capacity 3000
Card Capacity 3000
Password Capacity 3000
Record Capacity 100000
Port
USB 1 × USB 2.0 port
Network Port 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port
Exit Button 1 channel
Door Status Detection 1 channel
Lock Control 1 channel
Alarm
Duress Alarm Yes
Door Sensor Timeout Yes
Intrusion Yes
Illegal Card Exceeding Threshold Yes
General
Power Adapter Included
Power Supply 12 VDC, 1 A;

Lithium battery
Power Consumption ≤6 W
Product Dimensions 181.6 mm × 135.6 mm × 32.7 mm (7.15″ × 5.34″ × 1.29″)
Packaging Dimensions Single device in inner box: 298 mm × 162 mm × 71 mm (11.73″ × 6.38″ × 2.80″)

Protective case: 383 mm × 313 mm × 349 mm (15.08″ × 12.32″ × 13.74″)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 5%–95% (RH), non-condensing
Operating Environment Indoor
Gross Weight 0.61 kg (1.34 lb)
Installation Surface Mount
Certifications CE
Storage Temperature –20 °C to +70 °C (–4 °F to +158 °F)
Storage Humidity 30%–75% (RH), non-condensing
