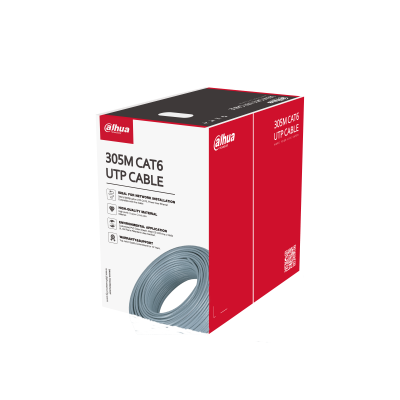

PFM920I-6UN-CN
PFM920I-6UN-CN - Image 2
,

PFM920I-6UN-CN

+ Free Shipping

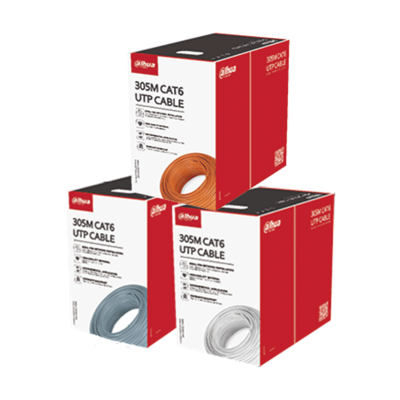

UTP CAT6 Cable

> 305 m (1000 ft)/carton UTP CAT6, power over Ethernet, compatible with one cable
> High-purity oxygen-free copper conductor
> Customized PVC outer sheath; CE CPR Eca flame retardant class certified
> 10-year warranty
Categories: ,
Conductor
Material Oxygen free copper (99.95% purity)
Diameter 0.53 mm ± 0.02mm（0.02″ ± 0.0007″)
American Wire Gauge 24AWG
Insulation
Material HDPE
Diameter 0.94 mm ± 0.05mm（0.04″ ± 0.0020″)
Color (4 Pairs) Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
Separator
Material PE
Sheath
Material PVC
Min. Average Thickness 0.5 mm(0.02″)
Diameter 5.8mm ± 0.03 mm(0.23″± 0.0012″)
Color Grey RAL7046/white/orange
Electrical
Max. DC Resistance of a Single Conductor(1000Hz) 9.0Ω/100 m
Unbalanced capacitance to ground ≤160pF/100m
Max. DC Resistance Unbalance 2% (pair intra), 4% (pairs inter)
Cable to Capacitance ≤5.6nF/100m
Transmission
Characteristic Impedance

(4-250Mhz)

 100 Ω± 15Ω
Mechanical
Tensile Strength Sheath≥13.5 MPa
Elongation at Break Sheath≥150%, insulation≥300%
Installation Bending Radius

-20℃, 4h

 >8 times of outer cable diameter
Conductor Elongation at Break ≥10%
Environmental
Shrinkage of Insulation ≤5%
Sheath Tensile Strength and Elongation at Break after Aging ≥12.5 MPa, ≥125%
Low Temperature Bending Test No cracking after the test
Heat Shock Test No cracking after the test
Operating Temperature –20°C to +75°C (–4°F to 167°F)
Storage Temperature and Humidity –10°C to +40°C (14°F to 104°F), <60% (RH)
Packaging
Cable Length 305.0 m (1000.66 ft) ± 1.5 m (4.92 ft)
Inner Carton Dimensions 416.0 mm × 412.0 mm × 220.0 mm (16.38″ × 16.22″ ×8.66″) (L × W × H)
Packaging Method 305.0 m (1000.66 ft) a carton
Net Weight 11.6±0.6kg(25.57 lb)
Gross Weight 12.5±0.6kg(27.55lb)
