LS550UEH-EF

+ Free Shipping
55’’ FHD Video Wall Display Unit (Ultra Narrow Bezel 0.88mm)
> Industrial level ADS LCD panel, suitable for continuous 24/7 operation
> Ultra-narrow 0.88mm bezel-to-bezel design
> Anti-glare and high brightness panel, vivid and memorable image quality
> Factory calibration technology for high color uniformity
> Built-in 3D noise reduction system and picture splicing function
> Abundant interfaces HDMI, DVI, VGA, BNC, USB, supporting HDMI daisy chain
> Infrared, RS232 dual mode, supporting remote control by computer
> Professional thermal design to extend device lifespan
> Built-in power, low energy consumption, ultra-quiet
> Modular structure design, multiple installation modes
> Widely used in surveillance center, command center, meeting room, commercial display scenes, etc.
Model
Model DHI-LS550UEH-EF
Display
Diagonal Size 55″(16:9)
Panel Type ADS
Resolution 1920×1080 (FHD)
Bezel Width 0.48mm (T/L), 0.4mm (B/R)
Backlight Direct LED
Brightness 700 cd/m²
Contrast Ratio 1200:1
Pixel Density 40dpi
Viewing Angle H178°, V178°
Response Time (G-to-G) 8ms
Color Depth 8bit (16.7M)
Color Temperature 10,000K
Surface Treatment Haze 25%, 3H
MTBF 50,000h
Signals

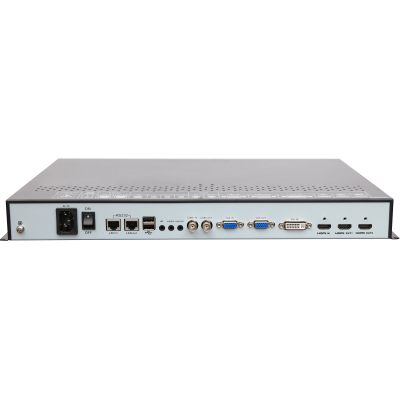

Input CVBS(BNC)×1, VGA(D-Sub)×1, DVI-D×1, HDMI×1, RS232×1, USB×2, Audio×1, IR×1
Output CVBS(BNC)×1, RS232×1, HDMI×2, VGA×1, Audio×1
General
Power Supply AC100V~AC240V, 50/60 Hz
Power Consumption (Standby) <0.5W
Power Consumption (Typical) 215W
Power Consumption (Max.) 230W
Energy Efficiency Class (EU) G
Installation Mode Floor-standing, wall-mounted
Wall Mount VESA 600×400mm, M6
Control Mode Infrared, RS232 dual mode, supporting remote control by computer
Net Weight 24.3kg (53.6Ib)
Gross Weight 34.1kg (75.2Ib)
Product Dimension (W×H×D) 1210.5mm×681.3mm×115.8mm (47.7″×26.8″×4.6″)
Package Dimension (W×H×D) 1360mm×945mm×280mm (53.5″×37.2″×11.0″)
Operating Environment Temperature 0℃~+50℃
Humidity 20%RH~80%RH (non-condensing)
