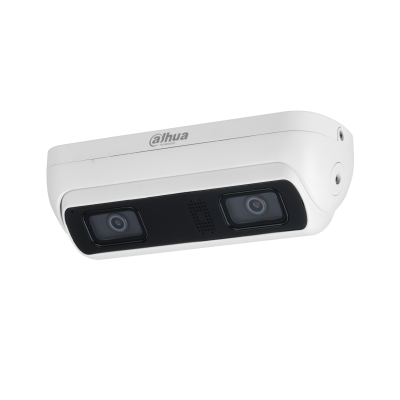

IPC-HDW8441X-BV-3D

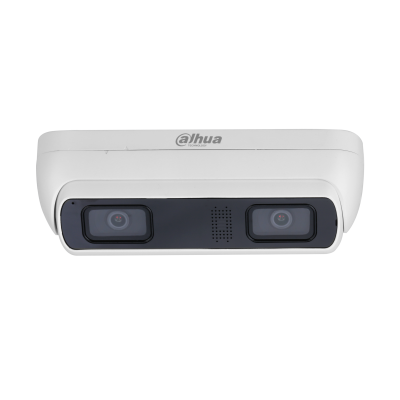

IPC-HDW8441X-BV-3D - Image 2
,

IPC-HDW8441X-BV-3D

+ Free Shipping
4MP WizMind Dual-Lens Stereo Analysis Network Camera
> 4-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
> Outputs max
> 4 MP (2688 × 1520)@25/30 fps.
> Built-in GPU chips, binocular stereo vision and deep learning algorithm, which can improve the detection accuracy.
> Intelligent functions: Stereo analysis and IVS.
> Stereo analysis: Crossing warning line, warning area intrusion, running detection, people approaching detection, violence detection, fall detection, abnormal number of people detection and people stay detection.
> Privacy Protection: Mosaics can be automatically placed over the face or body of a person to protect their privacy.
> Built-in IR LED, and the max. illumination distance is 20 m.
> Sound Management: With its built-in Mic and Dahua noise reduction algorithms, the camera supports the sound management function, using it to collect vocals, adaptively reduce noise, and filter non-human voices.
> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.
> Height self-adaptation and height filtering.
> Alarm: 2 in, 2 out; audio: 2 in, 1 out; RS-485; BNC; supports max. 512 G Micro SD card; Built in Mic and speaker, support two-way talk.
> 12 VDC/PoE/ePoE power supply, 12 VDC power output, max. current 165 mA, and peak current 700 mA, easy for installation.
> IP67 and IK10 protection.
Categories: ,
Camera
Image Sensor 1/2.8″ CMOS
Max. Resolution 2688 (H) × 1520 (V)
ROM 4 GB
RAM 2 GB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination 2.0 mm:

0.005 lux@F2.0 (Color,30 IRE)

0.0005 lux@F2.0 (B/W,30 IRE)

0 lux (Illuminator on)

2.8 mm:

0.005 lux@F1.6(Color, 30 IRE)

0.0005 lux@F1.6 (B/W, 30 IRE)

0 lux (Illuminator on)
S/N Ratio >56 dB
Illumination Distance Up to 20 m (65.62 ft) (IR)
Illuminator On/Off Control Auto;Manual
Illuminator Number 1 (IR LED)
Angle Adjustment Tilt: -10° to 70°
Lens
Lens Type Fixed-focal
Lens Mount M12
Focal Length 2.8 mm;2.0 mm
Max. Aperture 2.0 mm: F2.0
2.8 mm: F1.6
Field of View 2.0 mm: H: 108°; V: 74°; D: 117°
2.8 mm: H: 87°; V: 55°; D: 97°
Iris Control Fixed
Close Focus Distance 2.0 mm: 0.4 m (1.31 ft)
2.8 mm: 1.1 m (3.61 ft)
DORI Distance Lens Detect Observe Recognize Identify
2.0 mm 44.8 m (146.98 ft) 17.9 m

(58.73 ft)

 9.0 m

(29.53 ft)

 4.5 m

(14.76 ft)
2.8 mm 63.6 m (208.66 ft) 25.4 m

( 83.33 ft)

 12.7 m

(41.67 ft)

 6.4 m

(21.00 ft)
DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.
Smart Event
IVS Abandoned object; missing object
Intelligence
IVS (Perimeter Protection) Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection; people gathering; loitering detection; privacy protection
Stereo Analysis Crossing warning line; warning area intrusion; running detection (only supported by inclined mount cameras); people approaching detection; violence detection (including fighting and smashing); fall detection; abnormal number of people detection; people stay detection; privacy protection; height filtering
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Codec Smart H.265+; Smart H.264+
AI Coding AI H.265; AI H.264
Video Frame Rate Main stream: 2688 × 1520@(1–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
third stream: 1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability 3 streams
Resolution 4M (2688 × 1520/2560 × 1440); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control ABR;CBR;VBR
Video Bit Rate H.264: 3 kbps–8192 kbps
H.265: 3 kbps–8192 kbps
Day/Night Auto(ICR)/Color/B/W
BLC Yes
HLC Yes
WDR DWDR
White Balance Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control Auto
Noise Reduction 3D NR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Image Stabilization Electronic Image Stabilization (EIS)
Smart Illumination Yes
Defog Yes
Privacy Masking 8 areas
Audio
Built-in MIC Yes, built-in Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm
Alarm Event No SD card; SD card full; SD card error; network disconnection; IP conflict; voltage detection; illegal access; motion detection; video tampering; scene changing; audio detection; tripwire; intrusion; fast moving; abandoned object; missing object; loitering detection; people gathering; parking detection; crossing warning line; warning area intrusion; running detection; abnormal number of people detection; fall detection; people approaching detection; violence detection; people stay detection
Network
Network Port RJ-45 (10/100/1000 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; auto registration
Interoperability ONVIF (Profile S; Profile G; Profile T); P2P; CGI
User/Host 20
Storage FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Browser IE: IE 9 and later
Chrome: Chrome 41 and later
Firefox: Firefox 50 and later
Safari: Safari 10 and later
Management Software Smart PSS Lite; DSS; DMSS
Mobile Client iOS;Android
Cyber Security Configuration encryption;Trusted execution;Session security;Digest;Security logs;WSSE;Account lockout;Security warning;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Firmware encryption;Generation and importing of X.509 certification
Certification
Certifications CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
RS-485 1 (baud rate range: 1200 bps–115200 bps)
Audio Input 2 channels (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 2 channels in: wet contact, 5 mA 3–5 VDC
Alarm Output 2 channels out: wet contact, 300 mA 12VDC
Analog Output 1 channel (CVBS output: BNC)
Power Output 12 VDC power output, max. current 165 mA, peak current 700 mA
Power
Power Supply 12 VDC/PoE (802.3af)/ePoE
Power Consumption Basic: 5.9 W (12 VDC), 7 W (PoE);
Max. (intelligence on + IR intensity + turn on the speaker+ power output): 10.8 W (12 VDC), 12.9 W (PoE)
Environment
Operating Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity ≤95% (RH), non-condensing
Storage Temperature –40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity ≤95% (RH), non-condensing
Protection IP67; IK10
Structure
Casing Material Metal
Product Dimensions 204.0 mm × 78.0 mm × 61.6 mm (8.03″ × 3.07″ × 2.43″)
(L × W × H)
Net Weight 0.82 kg (1.81 lb)
Gross Weight 1.14 kg (2.51 lb)
