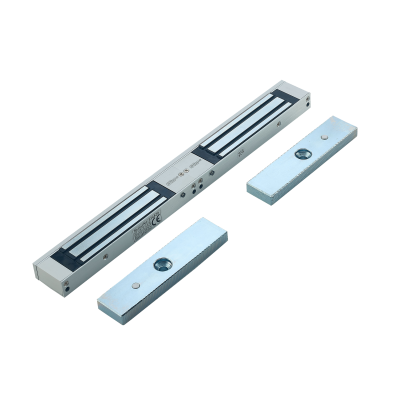

ASF180B-V1

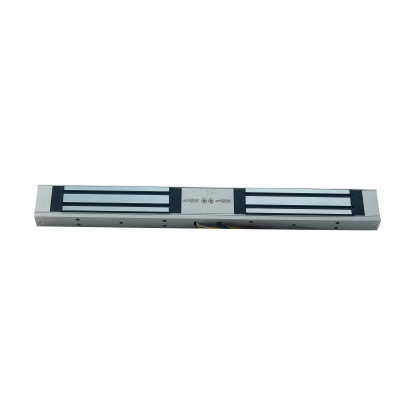

ASF180B-V1 - Image 2
,

ASF180B-V1

+ Free Shipping

Magnetic Lock

> Built of aluminum alloy and treated with surface oxidation, making it suitable for indoor scenes.
> Embedded reverse current protection equipment.
> Built with anti-wear materials and has an anti-residual magnetism design.
> Displays the status with the LED indicator.
> 5-wire that supports door detector signal feedback.
> Has a long service life, allowing it to be powered on up to 40,000 times as indicated by the aging test.
> Completely relies on the electromagnetic force and is free from mechanical failure.
> Automatically unlocks the door when the device is powered off.
> Suitable for doors made of a variety of materials such as wood, glass.
> Compatible with all Dahua access control devices, and other mainstream access control devices.

Categories: ,
Basic
Product Type Magnetic lock
Casting Material Aluminum alloy
Surface Treatment Electroplating and drawing
Suction Plate Dimensions 180 mm × 38 mm ×13 mm (7.09″ × 1.50″ × 0.51″) (2 pcs)
Function
Signal Output COM/NO/NC
Door Status Detection 1, relay
Security Open while power off
Performance
Max Tension 180 kg (396.83 lb) (2 pcs), tensile force
Line-lock Angle 90°
General
Applicable Door Thickness 5 cm–15 cm (1.97″–5.91″)
Power Adapter Optional
Power Supply 12 VDC, 370 mA (2 pcs)
Power Consumption ≤9 W (working)
Lifespan 40000
Product Dimensions 360 mm × 40 mm × 21.5 mm (14.17″ × 1.57″ × 0.85″)
Packaging Dimensions 385 mm × 210 mm × 250 mm (15.16″ × 8.27″ × 9.84″)
Operating Temperature -20 °C to +55 °C (-4 °F to +131°F)
Operating Humidity 5%–95% (RH), non-condensing
Operating Environment Indoor
Gross Weight 2.3 kg (5.07 lb)
Accessory DHI-ASF180ZL-V1, DHI-ASF180L-V1, and DHI-ASF180U-V1
Installation Surface Mount
Anti-corrosion Level Basic Protection
